YL 70W CO2 Laser Tube Description

Precision Engraving:

• YL CO2 Laser Tubes offer superior construction to produce stable laser beams for precise markings on a wide variety of materials.
• Cut through thick materials and engrave your designs faster, deeper, and clearer.

High Power:

• Rated Power: 70W
• Beam Diameter: 5.3 mm (0.21 in.)
• Operating Voltage: 18kV
• Max. Operating Current: 24 mA

Extended Lifetime:

• 70W Borosilicate Glass CO2 Laser Tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 7,000–8,000 Hours
• Moderate Power 40–70% = 5,500–7,000 Hours
• High Power 70–100% = 4,000–5,500 Hours

Advanced Features:

• POWERFUL LASER TUBE: This 70W CO2 laser tube offers outstanding performance ideal for all your applications, including engraving, cutting, and marking acrylic, cardboard, ceramics, cloth, glass, leather, paper, plastic, stone, wood, and more!
• PREMIUM CONSTRUCTION: Made out of borosilicate glass, copper, and aluminum alloy, this high-power laser tube is built to last.
• LONG-LASTING PERFORMANCE: The excellent design and materials of this laser tube create a durable hermetic seal and offer superior heat dissipation to give you a maximum service life of 8000 hours of operation at low-intensity settings. (Constant use at higher settings will reduce the tube's mean time to failure to around 4000 hours.)

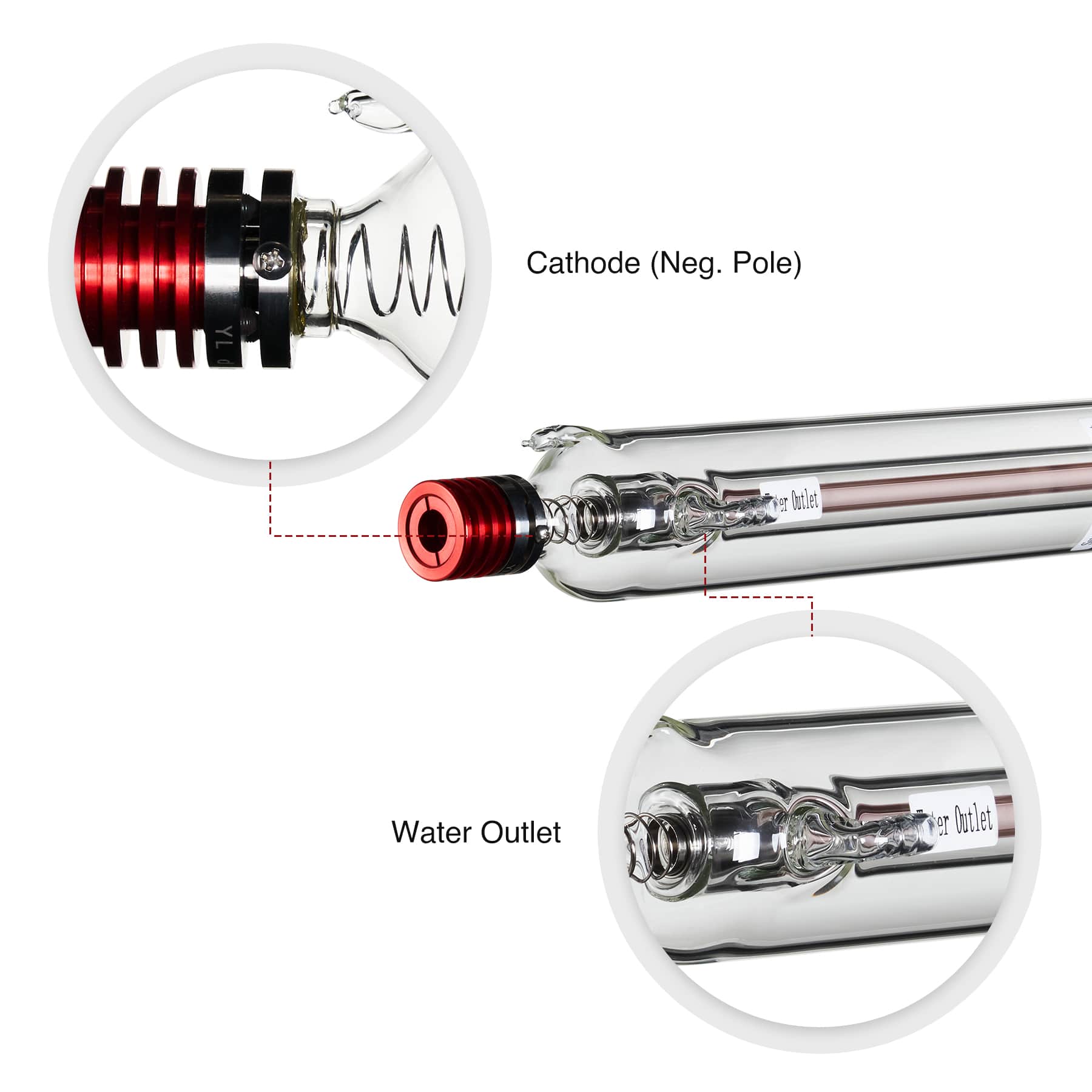

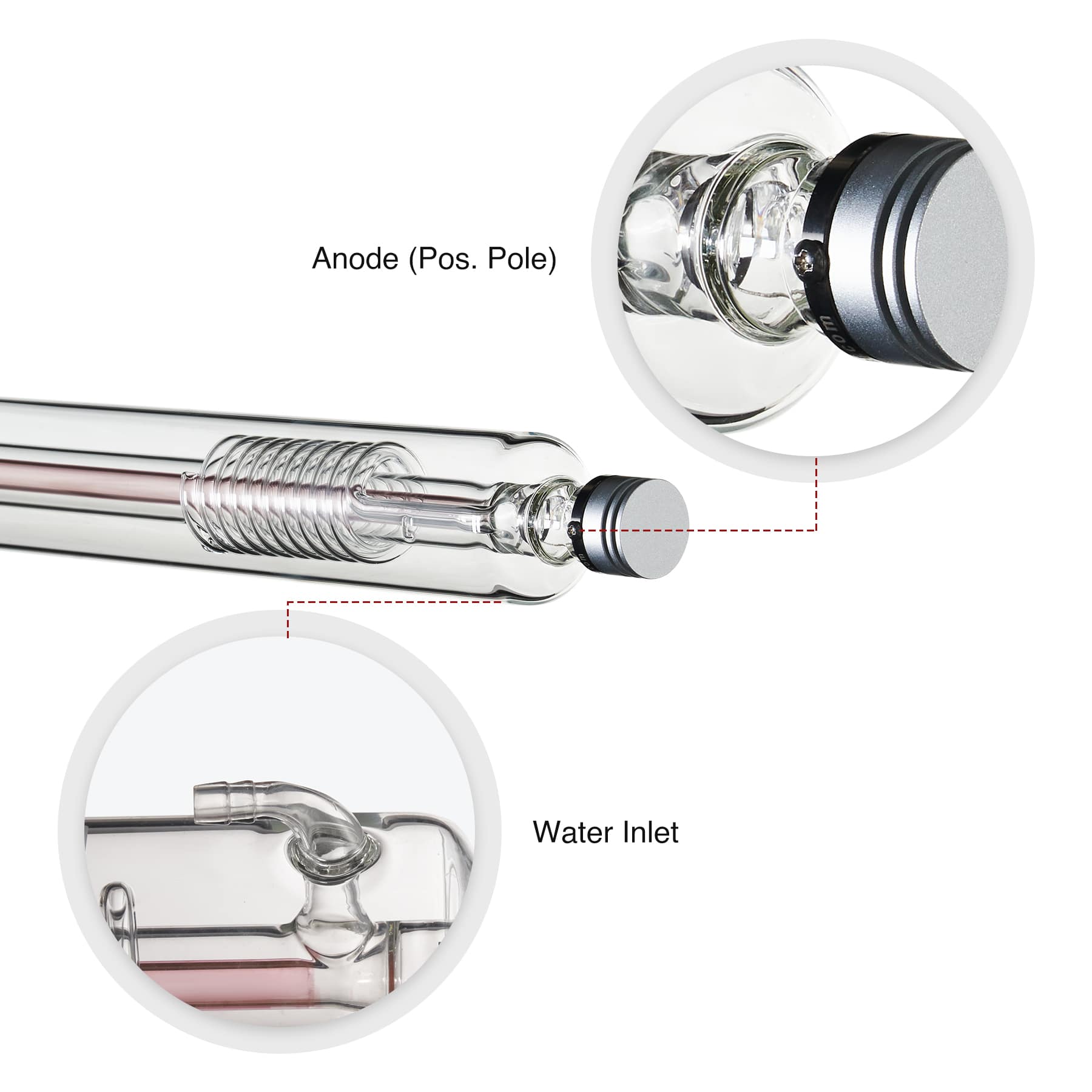

• SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.

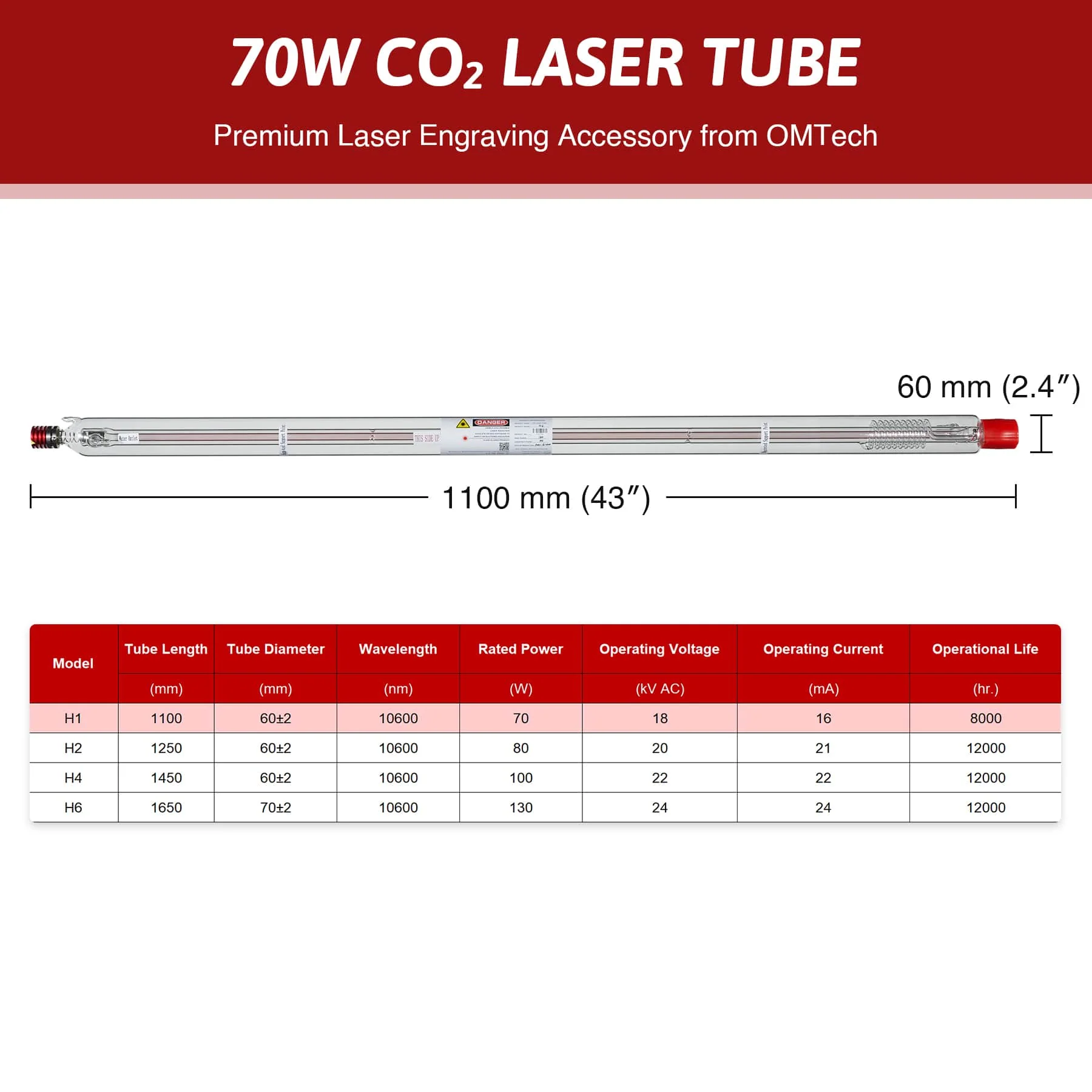

• SPECIFICATIONS: This borosilicate glass laser tube is 1100 mm (3'7") long and 60 mm (2.4") across. Your laser cutting machine should have a little more space to allow a proper fit. It operates at 18kV and 26 mA or less.

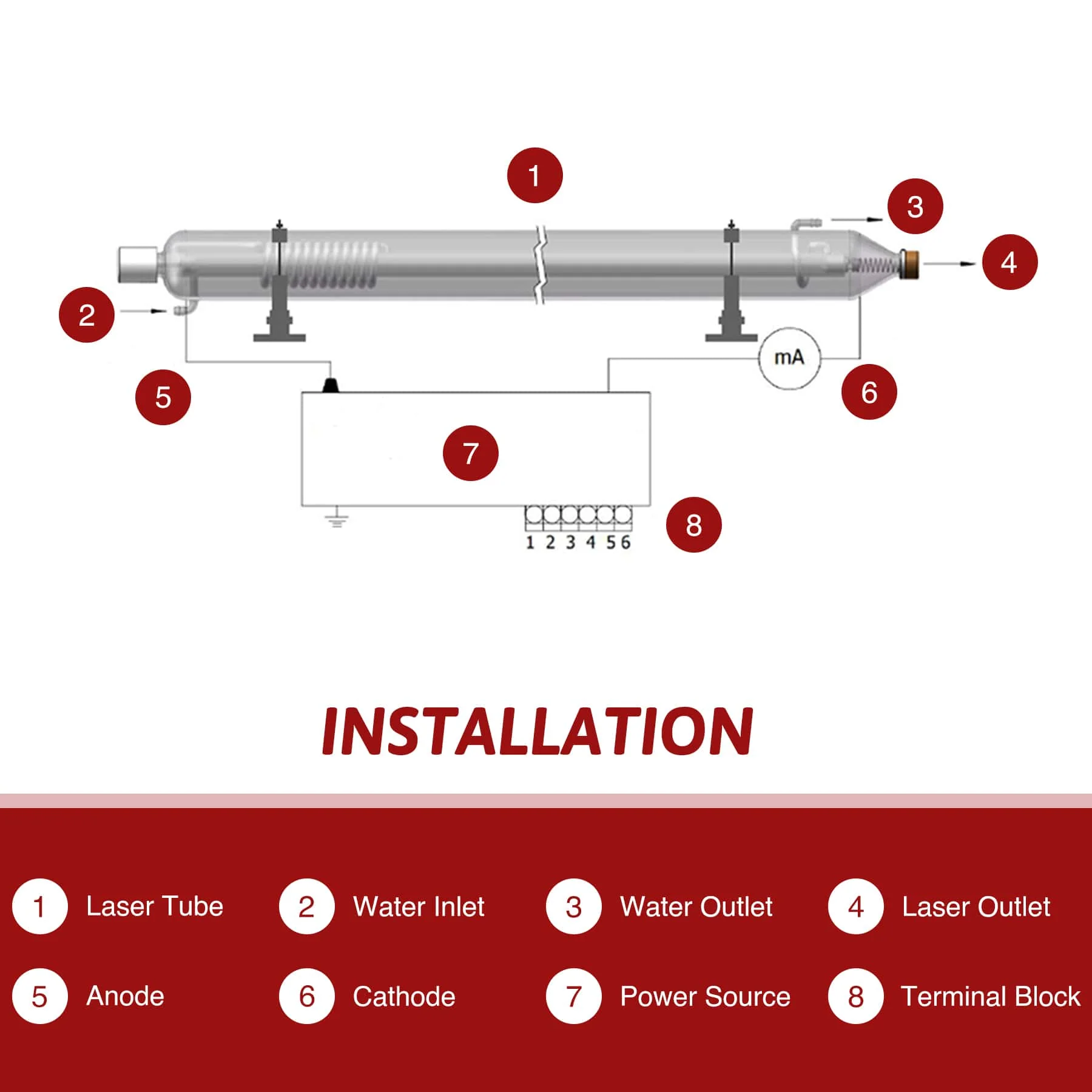

• INSTALLS IN MINUTES: Preinstalled connection wires and ports allow for fast and easy hook-up to both your power supply and water cooling system, without any need to bother with threading or soldering wires.
• ALIGNMENT GUIDANCE COMPATIBLE: Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more taping your mirrors!
• We recommend using the OMTech CW-5200 industrial chiller with distilled water to maximize the laser tube’s lifetime.

Specs:

• Material: Borosilicate Glass, Copper, Plastic
• Length: 1100 mm (3 ft. 7 in.)
• Outer Diameter: 60±2 mm (2.4 in.)
• Expected Lifespan (MTTF): 4000-8000 hr
• Rec. Operational Temperature: 15-32°C (60-90°F)
• Recommended Humidity: 30-60%
• Net Weight: 3 kg (6.6 lb.)

Package Includes:

• 1 x 70W H1 CO2 Laser Tube
• 1 x User Manual

Warranty:

• No need to worry! We offer a 6-month warranty on all YL laser tubes 70W and up.

Certifications:

• FDA Compliant
• CE Certification
